In clinical medicine, venipuncture is one of the most common procedures—IV infusion, blood draws, medication administration—almost every treatment relies on it. However, for children, obese patients, elderly individuals, and those with poor vascular conditions, locating a suitable vein for puncture is often not easy. The traditional "rely on touch and experience" approach is not only inefficient but can also cause patients the pain of repeated needle sticks.

The emergence of vein finders is precisely to solve this clinical challenge. So how exactly do they make "invisible" veins clearly visible?

Near-Infrared Light: The Secret to Penetrating Skin

The core technology behind vein finders is near-infrared (NIR) imaging. Human venous blood contains large amounts of deoxygenated hemoglobin, while surrounding tissues (such as fat and muscle) are primarily composed of water, proteins, and other substances. Research has found that deoxygenated hemoglobin has a stronger absorption capacity for specific wavelengths of near-infrared light (approximately 780nm to 2526nm), while surrounding tissues reflect more of the NIR light.

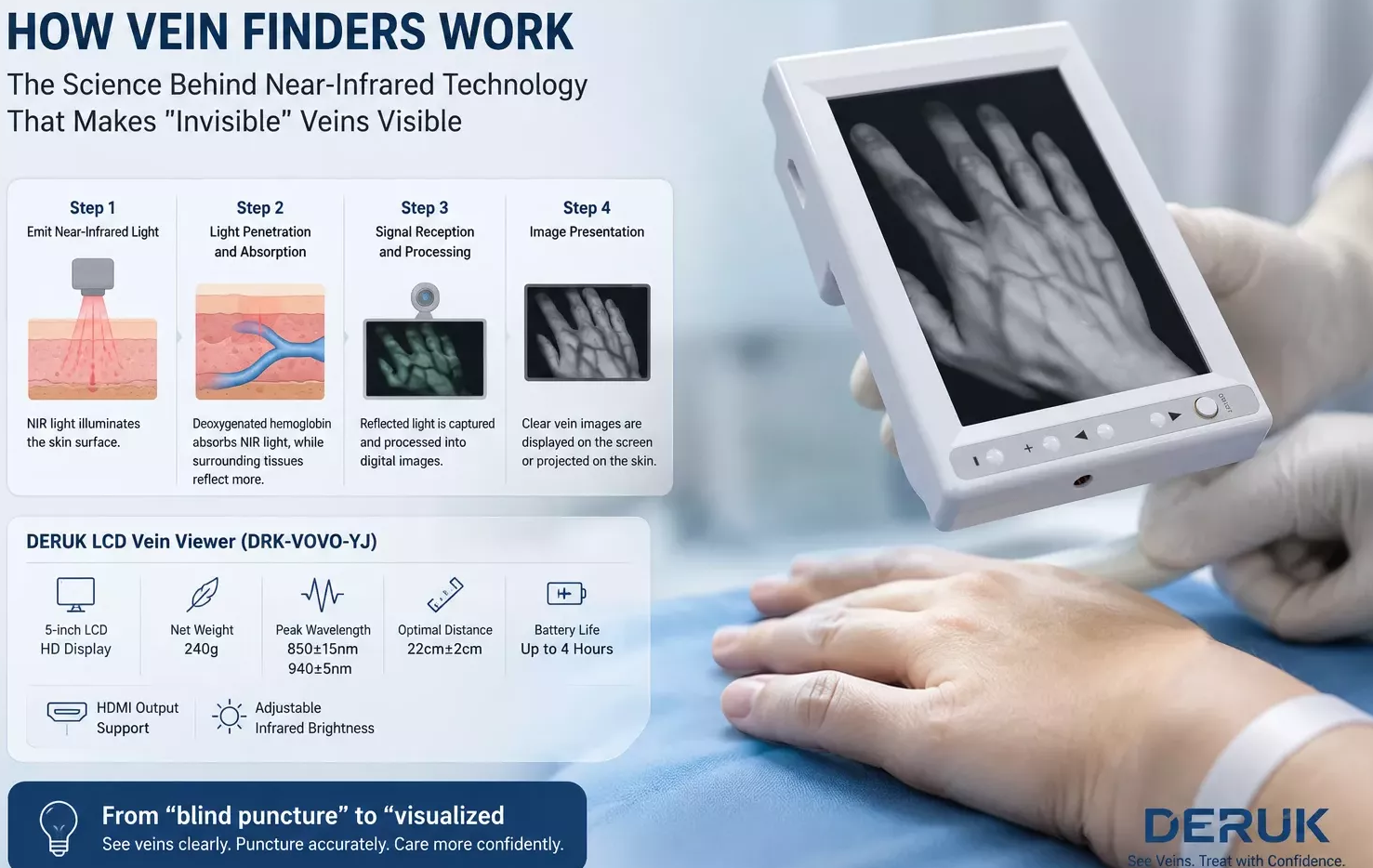

Based on this optical property, vein finders achieve vein visualization through four core steps:

Step 1: Emit Near-Infrared Light. The built-in NIR light source emits a specific wavelength of near-infrared light onto the patient's skin surface.

Step 2: Light Penetration and Absorption. After the NIR light penetrates the skin tissue, the deoxygenated hemoglobin in the venous blood absorbs most of the light energy, while surrounding tissues reflect more light.

Step 3: Signal Reception and Processing. A high-precision camera captures the reflected light signals. Through photoelectric conversion and advanced image algorithms, these signals are converted into digital images.

Step 4: Image Presentation. The processed venous vascular images are displayed on a high-definition screen or projected onto the skin, allowing healthcare professionals to clearly see the direction, position, and branches of subcutaneous veins.

DERUK Vein Finder Technical Specifications

DERUK offers multiple vein finder models to suit different clinical needs. The DERUK LCD Vein Viewer (model DRK-VOVO-YJ) features a 5-inch LCD HD display with host dimensions of 144×86×16mm and a net weight of just 240g, making it highly portable. The device operates at peak wavelengths of 850±15nm and 940±5nm, with an optimal shooting distance of 22cm±2cm and a battery life of up to 4 hours. The device supports HDMI output and offers adjustable infrared brightness.

For users requiring projection-based visualization, the DERUK DRK-VOVO-TYplus offers projection display with a net weight of 0.5kg, peak wavelengths of 850±15nm and 940±15nm, projection accuracy of ≤0.1mm, and an impressive battery life of ≥10 hours. The device supports multiple color modes (green, yellow, red, white) and both front and reverse projection modes.

The Revolutionary Shift from "Blind Puncture" to "Visualized"

With a vein finder, venipuncture is no longer a blind operation reliant on touch alone. Healthcare professionals can accurately assess vein position, direction, and depth under clear image guidance, selecting the optimal puncture point. This not only significantly improves first-attempt success rates and shortens procedure time but also greatly reduces patient pain and anxiety.

As one clinical nurse put it: "With this device, it's like having X-ray vision—I never have to worry about not finding a vein again.
