Views: 62 Author: DERUK Publish Time: 2026-10-23 Origin: Site
A vein finder uses near-infrared (NIR) light, an optical sensor, and image processing to help visualize superficial veins beneath the skin. Depending on the device design, the processed vein image can be projected directly onto the skin or displayed on an integrated screen.
Vein visualization technology provides healthcare professionals with an additional visual aid when assessing superficial veins before veinpuncture and peripheral intravenous (IV) access. It may be particularly helpful when veins are difficult to identify through visual inspection alone.
In this guide, we explain how a near-infrared vein finder works, how projection-based vein visualization operates, how projection devices differ from screen-based models, and what hospitals and medical device distributors should consider when selecting a device.
The working principle of a near-infrared vein finder is based on differences in the optical properties of blood and surrounding tissue.
When near-infrared light illuminates the skin, hemoglobin in the blood absorbs light differently from surrounding tissues. The resulting optical contrast depends on factors such as the wavelength, tissue characteristics, and optical design of the device.
An optical sensor captures the reflected light, and the device processes the captured information to enhance contrast between superficial veins and surrounding tissue. The processed image is then presented visually to help healthcare professionals assess potential vein locations.
Because near-infrared light is outside the range of human vision, the device converts the captured optical information into a visible image.
The image presentation depends on the device design:
Projection vein finder: Projects the processed vein pattern directly onto the skin.
Screen-based vein visualization device: Displays the processed image on an integrated screen.
Both designs provide additional visual information about superficial veins. Actual image quality varies with device specifications, patient characteristics, ambient lighting, positioning, and other operating conditions.
A vein finder is an aid to clinical assessment. It does not replace professional judgment, appropriate vein assessment, or ultrasound when deeper vascular access requires it.

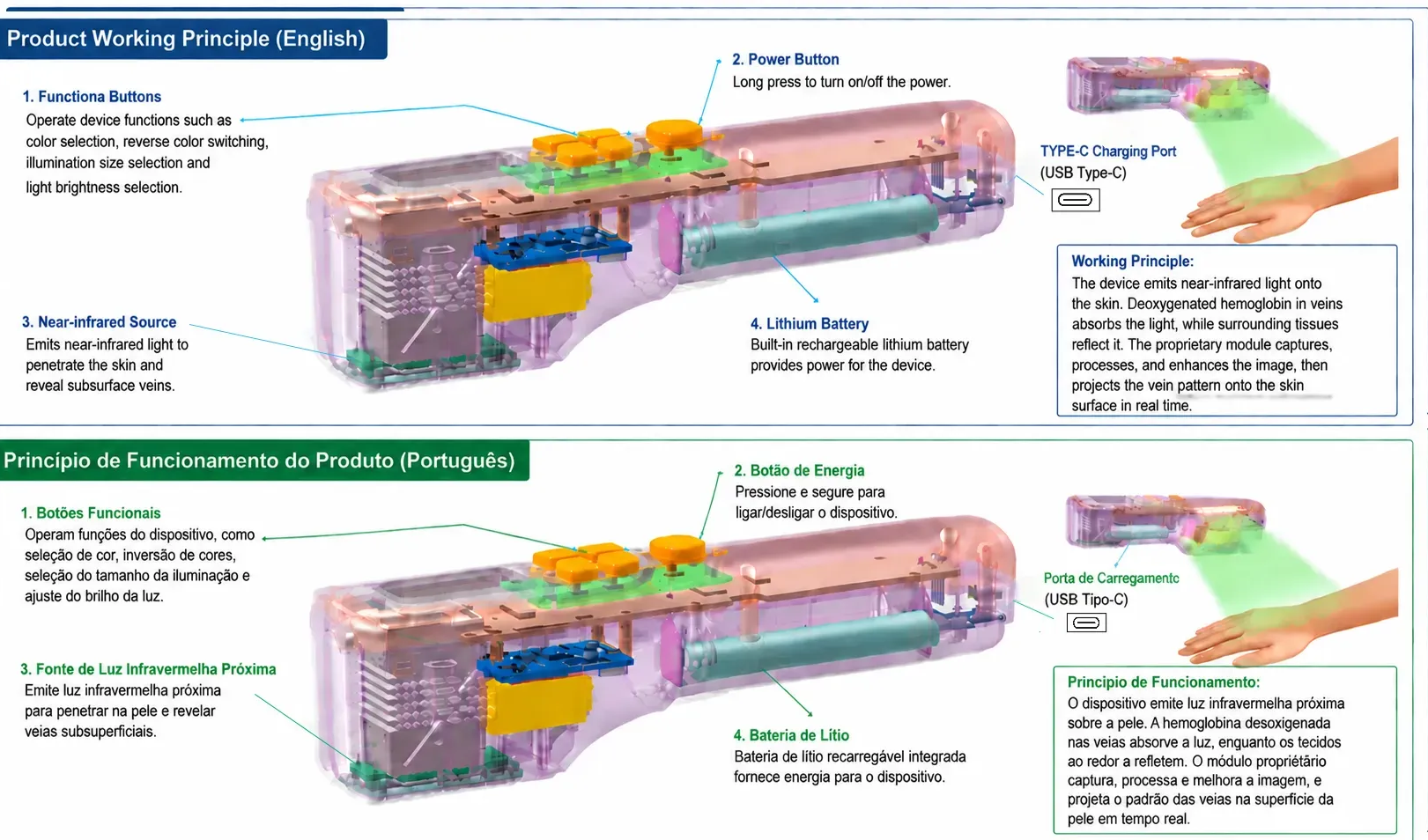

A projection vein finder combines near-infrared imaging, image processing, and visible-light projection to display a vein pattern on the skin.
The process typically involves four steps.
A near-infrared light source illuminates the selected area of the skin.
An optical sensor captures reflected light and records differences associated with blood vessels and surrounding tissue.
The device processes the captured information to enhance the contrast of superficial vein patterns.
The processed image is projected back onto the skin. When the projection is properly aligned with the imaging system, healthcare professionals can view the vein pattern directly on the target area.
This in-place presentation may help users interpret the vein pattern without repeatedly shifting their attention between the patient's skin and a separate display.
However, visualization quality depends on the device, patient characteristics, ambient lighting, working distance, positioning, and other operating conditions. Buyers should evaluate authentic product demonstrations under conditions relevant to their intended applications.
Vein visualization devices present processed images in different ways. Understanding these differences helps healthcare providers and distributors evaluate which design better suits their requirements.
Feature | Projection Vein Finder | Screen-Based Vein Visualization Device |
|---|---|---|
Image presentation | Projects a visible vein pattern onto the skin | Displays the processed image on an integrated screen |
Viewing method | Allows direct viewing of the projected pattern on the target area | Requires the user to view the device screen |
Key consideration | Projection alignment, working distance, and visibility | Screen clarity, display size, and viewing angle |
Workflow consideration | Presents the vein pattern directly at the target area | Presents the image separately on the screen |
Evaluation method | Assess projection visibility under realistic conditions | Assess image clarity and usability in the intended setting |
Neither design should automatically be considered clinically superior. The most appropriate choice depends on intended use, device specifications, clinical workflow, portability requirements, and user preference.
When comparing products, buyers should review authentic demonstrations and verified specifications rather than rely on product descriptions alone.
For hospitals, clinics, importers, and medical device distributors, choosing a vein finder involves more than understanding its imaging principle.
Evaluate whether the device provides a clear, usable representation of superficial vein patterns under appropriate operating conditions. Ask suppliers for authentic demonstrations and information about the conditions in which the images were captured.
Vein visibility can vary with skin and tissue characteristics, vein depth, ambient lighting, and other factors. Buyers should assess performance across relevant patient groups and intended use scenarios instead of assuming that all devices perform identically in every situation.
A handheld, battery-powered design can support flexible use in patient rooms, outpatient departments, and blood collection areas. Buyers should confirm battery capacity, operating time, charging requirements, and battery replacement options.
Depending on the model, selectable image colors and adjustable display settings may help users choose a presentation that is comfortable to view. Confirm the number of available options and other functions in the official product specifications.
Intuitive controls, straightforward positioning, and convenient charging can support routine clinical use and product demonstrations.
Distributors should assess applicable product documentation, training resources, warranty arrangements, spare parts availability, delivery lead times, and technical support.
DERUK offers handheld projection vein visualization devices for healthcare equipment buyers and international medical device distributors.
The DERUK DRK-V500 and DRK-V500PRO can be evaluated according to their respective specifications, intended uses, and operating features.
The DRK-V500PRO includes the following features:
18 display color options for user-selected image presentation.
Real-time projection of processed superficial vein patterns onto the skin.
Handheld, portable design for flexible use in clinical settings.
Rechargeable lithium battery for cordless operation.
USB Type-C charging for convenient charging.
Adjustable image settings to support different operating preferences.
For hospitals and distributors comparing projection vein finders, the DRK-V500PRO is one model to evaluate alongside other devices. Review its specifications, request an authentic demonstration, and confirm that its features meet your intended application and target-market requirements.
Explore the product: [DERUK DRK-V500PRO Projection Vein Finder — https://www.veinspectrum.com/Portable-Handheld-Color-Monochrome-Projection-Vein-Viewer-pd178523638.html]
For model-specific specifications and configurations, please refer to the relevant product documentation.
Near-infrared vein visualization may provide an additional visual aid in clinical settings where superficial veins are difficult to identify.
Potential application areas include:
Pediatrics: Supporting superficial vein assessment in infants and children when appropriate for the device's intended use.
Geriatric care: Assisting vein identification in older adults.
Emergency and outpatient care: Providing additional visual information before veinpuncture and peripheral IV access.
Oncology and infusion services: Supporting vein assessment for patients who may have difficult venous access.
Blood collection centers: Assisting routine superficial vein assessment before blood collection.
The usefulness of vein visualization technology varies by patient, device, and clinical setting. Visualization alone does not guarantee successful cannulation or improved clinical outcomes. Healthcare professionals should follow the manufacturer's instructions and applicable clinical protocols.
When evaluating a vein finder manufacturer or supplier, distributors should consider the following factors:
Verified product specifications: Confirm the technical parameters and features of each model.
Authentic product demonstrations: Review real device images and demonstrations under clearly described conditions.
Product documentation: Request applicable technical documents and conformity information for the target market.
Supply capability: Assess production lead times, packaging, order quantities, and delivery arrangements.
After-sales support: Confirm training, warranty terms, technical assistance, and spare parts availability.
OEM/ODM options: Ask about customization services, branding requirements, and minimum order quantities.
These checks can help distributors assess whether a product is appropriate for their market, customer requirements, and regulatory environment.
It uses near-infrared illumination and an optical sensor to capture differences in light absorption and scattering between blood and surrounding tissue. Image processing then enhances the vein pattern for visual presentation.
Performance depends on the device's wavelength, optical design, image processing, patient characteristics, and operating conditions. Buyers should request authentic demonstrations across relevant skin tones and compare results under similar conditions.
Dense body hair and other skin-surface characteristics may affect how vein patterns are visualized. Performance varies by device and operating conditions, so buyers should review real demonstrations on relevant skin types rather than assume identical results for every patient.
A vein visualization device may be used as an additional aid in pediatric vein assessment when appropriate for its intended use and clinical protocols. Healthcare professionals should follow the manufacturer's instructions and applicable clinical guidance.
A projection vein finder displays the processed vein pattern directly on the skin, while a screen-based device presents the image on an integrated display. The preferred design depends on workflow, device specifications, and user needs.
Distributors can contact the manufacturer to request model-specific specifications, applicable documentation, sample availability, quotation details, and information about customization options.
DERUK supplies handheld projection vein visualization devices for international medical device distributors and healthcare equipment buyers.
If you are evaluating the DRK-V500 or DRK-V500PRO for your market, contact our team to request product specifications, discuss sample availability, and obtain a wholesale quotation.
Contact DERUK to discuss your vein visualization device requirements and distribution opportunities.
